HEHP Fabric Dyeing Machine




ADVANTAGES

Reel less, effortless cycle, high fabric quality

Design with no reel and effortless fabric circulation cycle, the fabric is carried into the nozzle with most effective position and hence lowest fabric tension. No reel friction and no reel tension on the fabric, achieving the highest fabric quality.



Hybrid design

The upper guiding pipe is designed with effortless flow and combined with pros of down flow guiding pipe, hence called Hybrid. Allows fabric to flow easily into nozzle (low nozzle pressure) and fabric is travelled through guiding pipe fully submerge in water in a relaxed position, increasing the quality of dyeing.



Low liquor ratio, energy efficient design

Chamber is specially designed to reduce the water consumption when dyeing. Inner plate is patent design with special w-shaped corrugated floor. Fabric is flowing unhindered in its circulating cycle without need of large motor pump, saving electricity cost.



Unique inner plate design, high production capacity

Special designed inner plate plus large chamber structure, allowing one single nozzle to dye up to two rope of fabric at one time (for fabric <175g/yard). Greatly increase the production capacity (increase up to 40% and above) and reducing the cycle time required, achieving a very even color shade.



Central control system, automatic computer control

The machine is fully automatic controlled with advanced computer system. Design to have a precise dye feeding control, greatly enhance the dyeing success ratio and quality of dyeing. In conjunction with the central control system will provide better production system and management.



Expansion device, no crease mark & no rolling selvedge

The front expansion device provides continuous impact & frequently changes the fabric position. Good to provide fabric expansion and to open filament, effective against curling fabrics. Rear expansion device allows the fabric to relax and softening, increasing the quality of dyeing.





Optional Extras

  1. High speed draining
  2. Water in flow meter
  3. Hot water tank
  4. Second chemical tank
  5. Dual water in & out
  6. Multi rate feeding device
  7. Chemical tank mixing device
  8. Swinging device for outer reel
  9. Bypass with proportional valve
  10. Intelligent rinsing system
  11. P.H. sensor & automatic aciddosing
  12. Proportional valve for heating & cooling
  13. Self cleaning filter

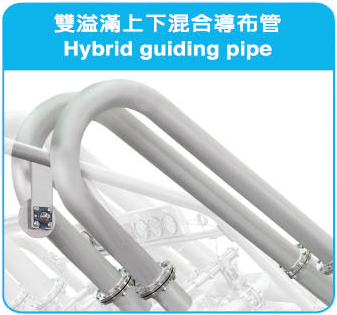

  14. Hybrid guiding pipe

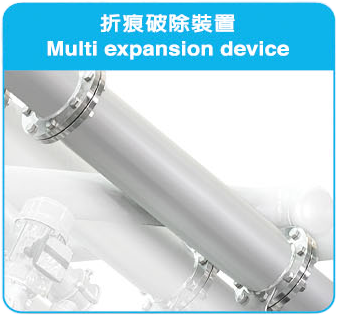

  15. Multi expansion device

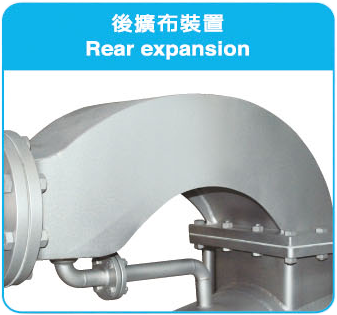

  16. Rear expansion
  17. Adjustable nozzle
  18. Quality Welding

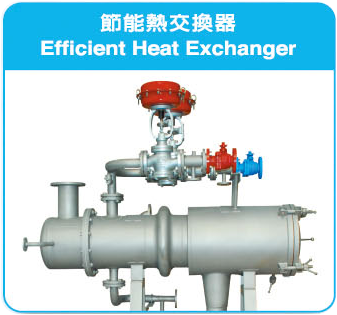

  19. Efficient Heat Exchanger
